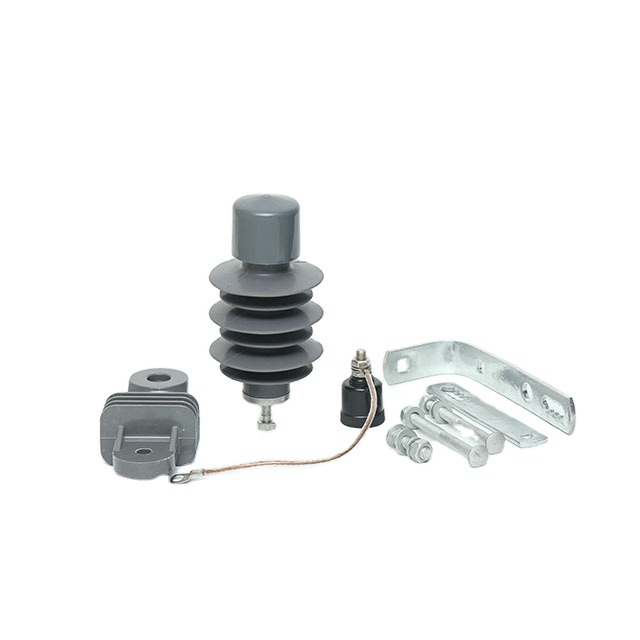

11kv Composite Metal Oxide Lightning Surge Arrester 11KV

100 Pieces
MOQ
11kv Composite Metal Oxide Lightning Surge Arrester 11KV
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 11KV
Color: Grey
Basic Infomation
Model Number: 11KV
Payment & Shipping Terms
Product Description
Product Description
1.Power frequency:48Hz~62Hz
2.Ambient temperature:-40 degree to + 40 degrees C
3.The maximum wind speed of no more than 35m/s
4.Altitude not exceeding 2000m
5.No more than 8 degree earthquake intensity
6.Ice thickness is less than 10mm
7.Long applied voltage does not exceed the maximum continuous operating voltage of the rays of the sun:
solar maximum irradation(1.1kw/mm²)impact has been in the product type test to be considered,if the arrester has in the vicinity
of other sources,lighting arrester used for both sides.
Technical specification
Product Model
Rated Voltage
Continuous Operating Voltage
Nominal Discharge Current (kA)
Rated frequency standard (Hz)
0.75 U1mA
Partial discharge
8/20μs Ligting Current Impulse (kV)
4/10μs High Current Impulse Witstand(kA)
2ms rectangular current impulse withstand
(kV)
(MCOV)(kV)
Leak Current (μA)
(pC)
(A)
HY10W-3kV
3
2.4
10
50
15
10
9
100
250
HY10W-6kV
6
4.8
10
50
15
10
18
100
250
HY10W-9kV
9
7.2
10
50
15
10
27
100
250
HY10W-10kV
10
8
10
50
15
10
30
100
250
HY10W-11kV
11
9.4
10
50
15
10
33
100
250
HY10W-12kV
12
10.2
10
50
15
10
36
100
250
HY10W-15kV
15
12.7
10
50
15
10
45
100
250
HY10W-18kV
18
14.4
10
50
15
10
54
100
250
HY10W-21kV
21
16.8
10
50
15
10
65
100
250
HY10W-24kV
24
19.5
10
50
15
10
72
100
250
HY10W-27kV
27
21.6
10
50
15
10
81
100
250
HY10W-30kV
30
24
10
50
15
10
90
100
250
HY10W-33kV
33
28.8
10
50
15
10
99
100
250
HY10W-36kV
36
29
10
50
15
10
108
108
250
