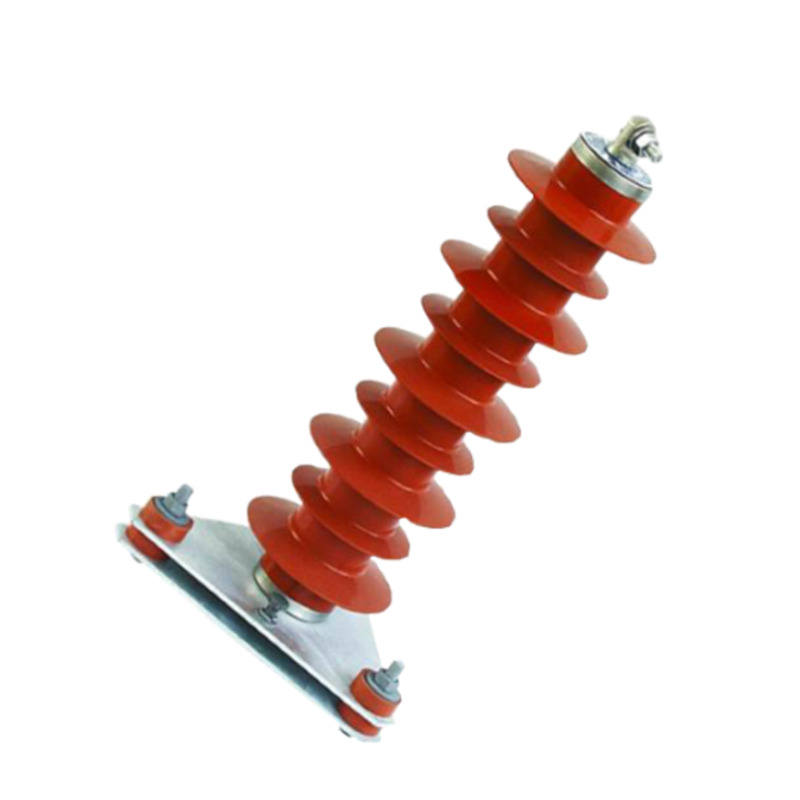

High Quality Hy5ws 33kv Lightning Arrester surge arrester lightning

10 Rods
MOQ
$500.00(10 - 99 Rods) $480.00(100 - 999 Rods) $470.00(1000 - 9999 Rods) $460.00(>=10000 Rods)
Price
High Quality Hy5ws 33kv Lightning Arrester surge arrester lightning
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YH10WZ-100/260
Product Name: Surge Arrester
Color: Gray
Application: Electric Power Transmission
Housing Material:: Silicone Rubber
Model Number: Yh10WZ-100/260
Tesr Report: ISO IEC BSI GB IEEC
Related Volatge: 100KV
Lightning Impulse Residual Voltage: 80KV
Brand: JD
Switch Impulse Residual Voltage: 221KV
Basic Infomation
Model Number: YH10WZ-100/260, yh10WZ-100/260
Payment & Shipping Terms
Packaging Details: carton box
Supply Ability: 500 Rod/Rods per Day
Product Description

Lightning arrester


TYPE: Composite metal oxide (ZnO) arrester
STRUCTURE: The composite metal oxide arrester is mainly composed of resistors, insulating bases and flanges
APPLICATION: Product various electrical equipment in power systems,railway electrification systems and communicaiton
systems
ADVANTAGE: Light weight,convenient for transportation and installation,maintenance-free,especially suitable for dirty
areas.

LIGHT WEIGHT SMALL SIZE
STURDY STRUCTURE
STRONG STAIN RESISTANCE
ELECTRIC CORROSION RESISTANCE
ANTI-AGING
GOOD EXPLOSION-PROOF PERFORMANCE
EASY OPERATION
EASY INSTALLATION AND MAINTENANCE


PRODUCT DETAIL AND ADVANTAGE
1.The  resistors are manufactured with high-quality raw materials and strict processes .The comprehensive performance of the resistors has reached China's advanced level.
2.The use of duriton encapsulating materials or epoxy composite casing fundamentally solves the problem of product failure caused by moisture intrusion.Even in a high temperature enviroment with a humidity of more than 90%，there will not be any failures.
3.Silicone rubber material is highly hydrophobic.it can prevent rainwater from forming continuous channels and prevent any pollutants from accumulating during use.make the product corrosion resistant and cut off the leakage current path.
Moreover,the flame retardant and self-extinguishing properties of the material can realize the product cleaning-free function.



Type
Rated Voltage UR
 (kv)
Continuous operating voltage Uc(KV)
1mA DC reference voltage U1mA
(KV)
Normal discharge current( KA)
Steep  current impulse residual volateg(KV)
Lightning impulse residual voltage (KV)
Switch impulse residual voltage(KV)
YH10WZ-100/260
100
80
153
10
291
260
221
YH10WZ-102/266
102
81.6
155
10
297
266
225
YH10WZ-108/281
108
86.4
164
10
314
281
239
YH10WZ-204/532
204
163.2
310
10
594
532
451
YH10WZ-216/562
216
172.8
328
10
628
562
477
JiangDong Group was founded in 1995, specialized in manufacturing and exporting hardware fittings, composite insulators, etc. Our factory and headquarter are located in Nantong, Jiangsu Province, the Eastern area of China, next to Shanghai Port.   JiangDong Group designs, develops, and manufactures hardware fittings for power transmission lines, distribution & substation systems, solar PV systems, and so on. With over 25 years of experience in producing and exporting, JiangDong Group has expanded its global markets in more than 147 countries and areas.   JiangDong Group possesses over 100 patents in manufacturing fittings and insulators. Moreover, all our products including raw materials are produced and selected according to strict European standards: IEC61284, IEC61854, IEC61897, IEC61952, etc. In addition, our composite insulators have passed the type test certification of CEPRI (China), KINECTRIC (Canada), CESI (Italy), Veiki (Hungary), and so on. All in all, high quality and reliability are our pursuits.   JiangDong Group is committed to providing precise products to satisfy different customers’ requirements. Last but not least, JiangDong Group will consistently serve the related hardware fittings industry relying on its sales & services network in China and all over the world.
HUMIDIFY
FORMING
DEBINDING
SINTERING
SPRAY GLAZE
GRINDING DISC
SPRAY ALUMINUM
CODING
MATCHING RESISTANCE
HEATING CORE
CORE ASSEMBING
NAILING
HEAT SHRINKABLE CORE
CONTAMINATION CONTROL ASSEMBLY WORKSHOP

ALUMINUM SPRAY ROBOT
FORMING MACHINE
WATER MACHINE
                                                                                   ELECTRICAL  TEST

JiangDong Group & Turkish Tech Promotion Conference
JiangDong Group & Pakistan National Gird
MOBILE WORLD CONGRESS

CIOE EXELCOM
MEE (Middle East Power Exhibition)
