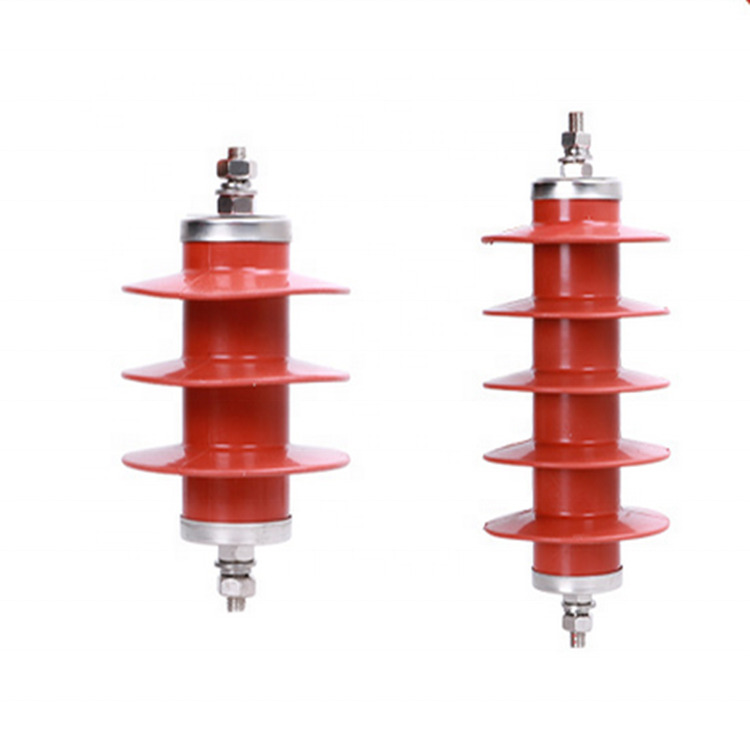

Name: Large Climb 3kV-10kV Polymer Zinc Oxide Lightning Surge Arrester YH10W
Brand: Large Climb 3kV-10kV Polymer Zinc Oxide Lightning Surge Arrester YH10W
SKU: YH10W
Price: 7.00 USD
Availability: InStock
Rating: 5 (105 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: YH10W

Product Name: Surge Arrester Hy10 W

System Rater Voltage: 3-10kV

Discharging Current: 10kA

Type: Polymer Zinc Oxide Arrester

Color: Gray/red, Red

Quality: 100%Brand

Packaging: Foam+Carton

Port: Ningbo/Shanghai

OEM: Accept

Sample: Accept

Basic Infomation

Model Number: YH10W

Payment & Shipping Terms

Packaging Details: By carton or plywood case. Based on Clients' requirements.

Supply Ability: 10000 Piece/Pieces per Month types of lightning arrester, surge arrester lightning

Product Description

Large Creepage 3kV-10kV Polymer Zinc Oxide Lightning Surge Arrester

Do Better Performances in Demanding Duties

6-10kV Medium-voltage surge arresters

The Zinc Oxide lighting arrester are used for protection of electrical equipment from all kind of over-voltages caused by lightening or switching operations. Yueqing Aiso surge arresters the most advanced over-voltage protector in the world, made of metal-oxide (MO) resistors without spark gaps directly molded in silicone housing, in gray color or red color, and designed and tested according to IEC 60099-4 and IEC 62848-1.Product characteristic1.Small size,Light weight,resistance to impact,no collision damage during transportation,flexible installation,suitable for use in the switch cabin.2.Special structure,the overall compression molding,no air gap,good sealing performance,moisture-proof and explosion-proof3.Large creepage distance,good hydrophobicity ,strong stain resistance,stable performance and reduce operation maintenance.4.Unique formula of zinc oxide resistors, small leakage current,slow aging,long service life.5.With DC reference voltage,rectangular flow capacity and high current and large current withstand capacity are higher than standard requirement.

Applications

Surge arresters for medium-voltage systemsProtection of equipment from power electronics to high energy capacitors, arc furnace transformers and otherSurge arresters for special applications in low-voltage systemsSurge arresters for AC traction systemsSurge arresters for DC traction systemsVoltage limiting devices for traction systems

Usual Service Condition

Power frequency:48Hz ~60HzAmbient temperature:-40°C~+40°CMaximum wind speed: not exceed 35m/sAltitude: not exceed 2000mEarthquake intensity: not exceed 8 degreesIce thickness: not exceed 10 meters.Long-term applying voltage does not exceed the maximum coutinuous operating voltage.

Why Yueqing Aiso?

Yueqing Aiso offers a complete range of surge arresters for HV, MV and LV as well for outdoor, indoor and GIS applications for AC and DC systems. Yueqing AISO surge arresters are based on the latest technology of metal-oxide resistors Directly molded silicone housing in advanced loop design for the best environmental robustness and to prevent internal dischargesLong life-time expectation of all Yueqing Aiso surge arresters.

Are you looking for support or purchase information?
Contact us

Main Technical Parameters

Type	Rated voltage kV(rms)	Maximurn continous operation voltage kV(rms)	Residual voltage			2000μs square wave current impulse withstand A(crest)	4/10μs high current impulse kA(crest)
Type	Rated voltage kV(rms)	Maximurn continous operation voltage kV(rms)	Steep current impulse kV(crest)	30/60μs Switching current impulse kV(crest)	8/20μs Lightning current impulse kV(crest)	2000μs square wave current impulse withstand A(crest)	4/10μs high current impulse kA(crest)
YH10W-3	3	2.6	9.5	7.7	9	250	100
YH10W-6	6	5.1	19.0	15.4	18	250	100
YH10W-9	9	7.7	28.5	23.1	27	250	100
YH10W-10	10	8.3	36.0	27.0	30	250	100
