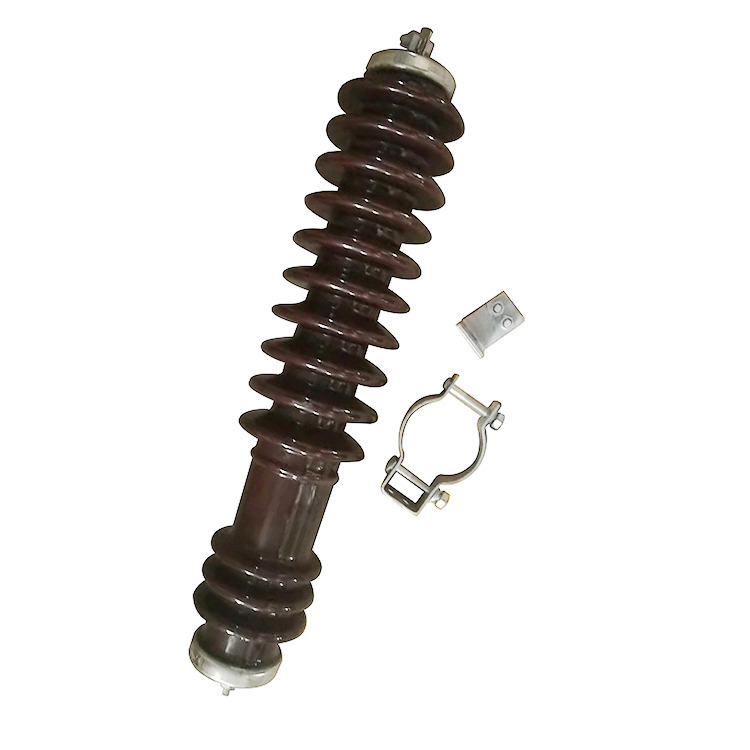

33KV 5KA Porcelain Surge arrester
Technical Parameters:
|
Description |
Unit |
Value |
|
Rated voltage |
KV |
30 |
|
Nominal discharge current |
KA |
5 |
|
Rated AC system frequency |
Hz |
50 / 60 |
|
Continuous operating voltage(rms) |
KV |
24 |
|
1/4μs steep current impulse (crest) |
KV |
102 |
|
8/20us Lighting impulse residual voltage(crest) |
KV |
90 |
|
30/60us Swithcing current impulse |
KV |
79 |
|
Rectangular current withstand 2ms |
A |
150 |
|
4/10us High current impulse withstand(crest) |
KA |
65 |
|
Leakage/Creepage Distance |
mm |
1139 |
|
Normal service conditions:
1.The ambient temperature: -40°C ~+40°C 2.The altitude above sea level :not exceed 1000-2000m (the altiplano area should be indicated when order) 3.Earthquake intensity: not higher than 7 degrees; 4.Maximum wind velocity :less than 35m/s. 5.The filthy area should be given clear indication.
|
|
Feature:
The zinc oxide surge arrester is the most advanced over-voltage protector in the world. Due to make the resistor disc of core component mainly adopt zinc oxide arrester. Compared with the conventional siliconcarbide arrester, this prescription of the product improves greatly the volt-ampere characteristics of the resistor disc and increase through- current capability at over-voltage so as to bring a rad local-changes for the characteristics of the arresters.
|
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.
Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.
Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.
