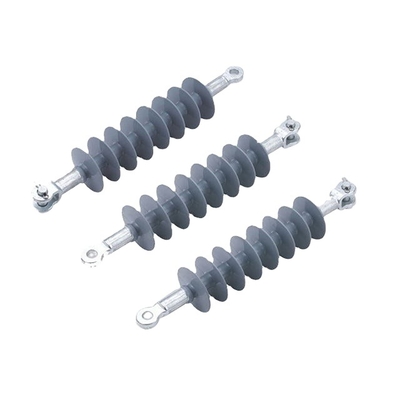

CDI-36/70 Deadend Insulator Types Electrical Insulators Composite Polymer
Composite deadend insulators fulfill th requirements of IEC 61109.The sheds of the insulators are made if highly hydrophobic silicon rubber.The core is made of corrosion resistant fiber glass rod and the end fittings are made of hot-dip galvanized steel.They are meant to be used on 12KV uo to 36KV distribution networks.
According to IEC61109.
1. Silicon Rubber for sheds/housing
2. Fiberglass reinforced epoxy resin rod (ECR type) for core
3. Hop dip galvanized cast steel for metal fittings
any question or Need about products, please E-mail or TradeManager to me or leave message
| Type | CDI-12/70 | CDI-24/70 | CDI-36/70 |
| Rate Voltage | 12KV | 24KV | 36KV |
| Specified Mechanical Load | 70KN | 70KN | 70KN |
| Dry Arcing Distance h | 180mm | 300mm | 404mm |
| Leakage Distance | 430mm | 660mm | 990mm |
| Power Frequency Dry Flashover |
110KV |
130KV |
200KV |
| Power Frequency Wet Flashover | 75KV | 110KV | 160KV |
| Section Length H | 180mm | 300mm | 404mm |
| Number of Sheds | 4 | 6 | 9 |
1. Q: Are you a factory?
A: Yes, we are professional factory
2. Q: Where are you located in?
A: Our factory located in Yueqing of China as the famous “Capital of Electric”
3. Q: Can we visit your factory?
A: Sure, welcome to visit our factory and our production line.
4. Q: Can we have samples?
A: Sure, we can provide sample for your evaluation.
5. Q: What is your delivery time?
A: It will be within 1 week for the product in stock, 2-5 weeks for new production order.
6. Q: What is your payment term?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 40% T/T in advance ,balance before shipment.
We see the high quality and the credit as our life, and always keeping our quality principle “ Quality Priority, Quality Management Standards, Customer Satisfaction, Brand Oriented”
Pomanique Electric Co., Ltd. is a leading high-voltage electric apparatus manufacturer specializing in designing and producing power transmission & distribution equipments. Pomanique founded in the year of 1996 and locating in the city of Wenzhou, Zhejiang province of China. We professionally produce Surge Arresters, Composite Insulators, Fuse Cutouts, Power Transformers, HV Switch Disconnector and Vacuum Circuit Breakers.
Currently, Pomanique is an ISO9001:2000 certified company and the products are certified by KEMA Lab. Meanwhile, we have been well recognized by the electric power industry home and abroad. Pomanique has been attaching great importance on the science & technology innovation, and set up a Research & Development Center for promoting products innovation in 2001. In recent 10 years, more than 50 products have passed the national evaluation and certification, and more than 25 products have passed the tests conducted by well-known international laboratories.
With the enterprise spirit of "Faith, Profession, Innovation, Customer First", Pomanique will persevere to be world-class professional and reliable manufacturer in the power transmission & distribution field.
