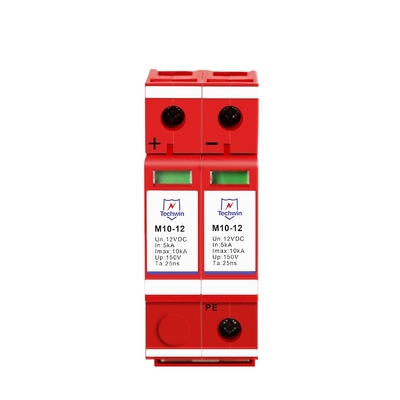

Factory Single Phase Surge Arrester 12v DC 12V 24V 48V For Power 90(H)*36(W)*65(L)mm

50 Pieces
MOQ
$12.50(50 - 98 Pieces) $11.80(99 - 299 Pieces) $9.31(>=300 Pieces)
Price
Factory Single Phase Surge Arrester 12v DC 12V 24V 48V For Power 90(H)*36(W)*65(L)mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: M10-12
Item Name: 12v Surge Arrester Factory Single Phase DC 12V 24V 48V For Power
Type: AC Surge Protector
Nominal Woriking Voltage: 12 VDC
Max Continuous Operating Voltage: 20VDC
Nominal Discharge Current: 5kA
Max. Discharge Current: 10kA
Response Time TA: 25ns
Protection Model: L/N-PE
Size: 90 (H)*36 (W)*65(L)mm
Pole Number: 2P
Color: Red
Basic Infomation
Model Number: M10-12, L/N-PE
Payment & Shipping Terms
Packaging Details: In carton Boxes
Supply Ability: 20000 Piece/Pieces per Day
Product Description
Products Description
High quality Device Surge Protection device for security camera M40B2
12v Surge Arrester Factory Single Phase DC 12V 24V 48V for Power
APPLICATIONS:
●DC power system
●DC switchboard
●DC distribution box
●Electronic information system box
●Output of second Power equipment.

FEATURES:
●DIN rail mounting for easy installation
●Plug connectors for quick and easy connection or rewiring
●Thermal disconnect device
●Remote alarm
●Status indicator
Model
M10-12
Electrical Parameter
lightning Protection Zone
1-2
According to IEC 61643
 Type 2
Nomimal working voltage( Un)
12VDC
Max continuous operating voltage( Uc)
20V DC
Nominal discharge current In (8/20 μs)
5kA
Max discharge current Imax (10/350 μs)
10kA
Protection level @20kA , 8/20µs Up
40V
Response time (Ta)
25ns
Protection model
+/--PE
Standards compliance
EC61643-1, UL94-V0, RoHS
Mounting
35mm DIN rail
Max connecting line diameter
6mm2（10mm2 PE wire）
Working conditions
 Temperature: -40 to 80℃,
Relative humidity: ≤95％
Dimension
90 (H)×36 (W)×65(L)mm
Material
PA66GF30Vo
IP code ( IEC EN 60529)
IP20
Surge protection device
Company Profile
SURGE PROTECTION DEVICE
Techwin’s products are manufactured according to international and domestic standards and under mostly strict quality standards on ISO9001
Techwin has complete testing equipment. Such as:module baking box, lightning protection component tester, network analyzer,crystalloid tester, aging tester etc.All Techwin products have regular test items, including operating voltage, protection level,
signal state, VSWR, insert loss, safety inspection, hot and cold test, vibration test, appearance and so on more than 10 routine tests.
Single SPD 1.2/50 and 8/20 mixture impact test, power SPD lightning current impact simulation test, thermal stability test .
SPD Application
Recommend Products

Tecnwin Certification:

*In 2007 POE SPD got Nationanl utility model patent *In 2008, Techwin outdoor data sampling equipment lightning protector got National Utility Model Patent Through the ISO9000:2008 quality system certification *In 2009, be the enterprise of MIIT Qualification Recognition CE and ROSH Certification *From 2016 we had TUV and UL listed
Exhibition
Our advantage:
1. 15 experience in lightning protection solutions.
2. Warranty: 5years warranty for our product surge protection device. 3. a.Cerfificates: CE,Rohs, TUV,UL,CQC, ISO9001,ISO14001,OHSAS18001 b.Testing reports: We can provide testing reports issued by an authority c.Patents: we have 24 patents for technology and appearance/ 4.We have our own lab and professional R&D team.OEM and ODM are available. 5. Excellent parameters reasonable prices. 6. Sample can be provided if need.

Safety protection, make a better world.
---- Tehcwin Surge protection device
