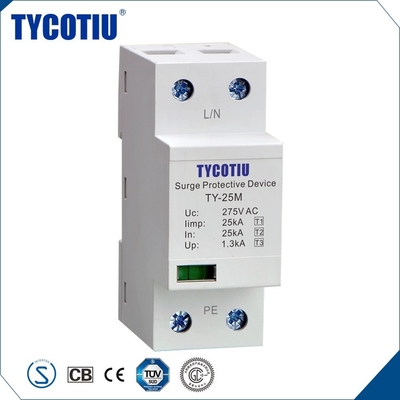

The surge arrester is suitable for TYCOTIU TY-25M 1P 25kA system TYCOTIU TY-25M 1P 25kA single-phase TN type 1 SPD low voltage AC lightning protection surge arrester

1.0 Pieces
MOQ
The surge arrester is suitable for TYCOTIU TY-25M 1P 25kA system TYCOTIU TY-25M 1P 25kA single-phase TN type 1 SPD low voltage AC lightning protection surge arrester
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: TY-25M 1P
Item Name: MOV Surge Protective Device
Type: Type 1
Material: Plastic
Protection Class: SPD Classification According To EN61643-11 Type 1 Type 2
Pole Number: 1P
Enclosure Material: Thermalplastic UL94-VO
Degree Of Protection: IP20
Certificate: TUV/SEMKO/CB/CE/ROHS/ISO9001 Approved Standard
Operating Temperature Range: -40℃-80℃
Application: Surge Arrester Is Suitable For Single-phaseTN System
Basic Infomation
Certification: TUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard
Model Number: TY-25M 1P
Payment & Shipping Terms
Product Description

You are here:Home>> AC power surge protection>Type 1 surge arrester

1P 25kA Low voltage AC Power Lightning Protection type 1 SPD Surge Suppressor

<Lightning Surge Arrester/Surge Protective Device/Surge Arrester>

Product Description

type 1 SPD Features

  • Multi-stage Status indicator
  • No follow current
  • Low voltage protection level
  • Protection class: Type 1,Class I
  • Pole number:1P,2P,3P,4P,1+1,3+1
  • Surge protectors are used to guard sensitive equipments from voltage spike

type 1 SPD Technology characteristic

Product Details

type 1 SPD Product characteristics

Specification

TY-25M 1P

Item name

Surge Arrester

SPD dassification according to EN61643-11

Type 1

Max continuous 0perating a.c. voltage Uc

275V

Lightning impulse current (10/350µs) limp

25kA

Norminal discharge current (8/20µs) In

25kA

Voltage protection level Up

≤1.3kV

Voltage protection level 5kA Up

≤1.1kV

Max. backup fuse

315A gG

Response time tA

≤25ns

For mounting on

35mm Din rail

Degree of protection

IP20

Payment term

30% deposit in advance,70% before shipment

Certificate

CE/ROHS/ISO9001

Logo

Customized logo available

Design ability

We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

Remote signaling

250V 0.5A

We can produce according to your requirements.

Contact us get the lowest price

Product Range
Workshop

TYCOTIU owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. TYCOTIU team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

Company Information

Zhejiang Tycotiu Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences. We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Exhibition

TYCOTIU have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

Certifications

TYCOTIU offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

Product Uses

TYCOTIU have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.

FAQ

01

How about your experience?

We have our own factory and in-house test laboratory, our R&D department have more than

17 years experiences.

02

What's your advantage?

Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.

Qulaity recognized :cooperate with transnational company.

03

Is custom design package acceptable?

Inner box and out carton are made as per international standard.

We can make packaging according to customer's need.

04

Could you do OEM for us?

Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.

05

How about warranty?

2-5 years.

06

Could I buy 1pc sample first and small order?

Of course,support sample order, especially for new customers under certain condition.

07

How long make a sample?

3-5 days.

08

How does your company do regarding the quality control?

Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory..

Over 17 years' OEM experience,we can provide professional solutions for customers. Click "Send "get the Latest quotation Now!!
