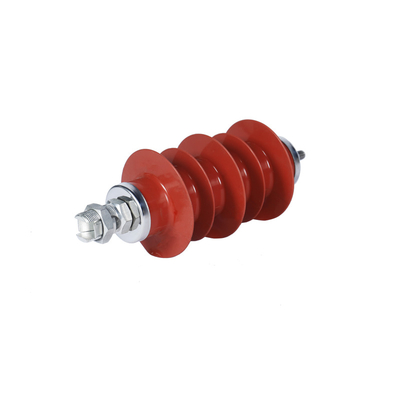

Electrical equipment 9kv 11kv electronic medium voltage metal oxide zno surge arrester 10ka

1 Piece
Electrical equipment 9kv 11kv electronic medium voltage metal oxide zno surge arrester 10ka
Features Gallery Product Description Request A Quote
Model Number: YH10W5-15
Type: 15kv Lightning Arrester
Housing: Polymer
Rated Voltage: 15 KV
Nominal Current: 10 KA
Accessory: Bracket,Insulating Cap,Cooper Lead,Insulator,Hoop
Color: Gray, Red
Material: Silicone Rubber
Poles Number: 1
Application: Electronic Equipment
Certificate: ISO9001:2008, KEMA
Basic Infomation
Certification: ISO9001:2008, KEMA
Model Number: YH10W5-15
Payment & Shipping Terms
Packaging Details: Carton
Supply Ability: 1500 Piece/Pieces per Day
Product Description

0.28kV~500kV Surge Arresters' Characteristics:
1. The Core column applied winding structure, Polymer Housed core pillar molded on the core column, with almost no internal air gap, and outstanding sealing performance Simple in structure, small in size and light in weight.
2. Polymer Housed with silicone rubber, explosion-proof ZnO varistor as the core component is large
in flow capacity.
3. International standard IEC 60099-4 and ANSI 62.22, and with high reliability. With fully insulated tops, the product can be applied to the complete cabinet installation, which can reduce the designing size of cabinet.
4. Products with detachment device can provide signals for quitting operation when failure occurs,
avoiding arrester explosion, and it is maintenance-free.
5. Polymer housed products with a six CTI level, creepage distance meets the requirements of IV level in heavy pollution areas.

Surge Arresters' Technical Parameters:

TypeYH10W5-15/41.24/10µS High current impulse kA100
Rated voltage---------kV15Lightning impulse withstand kV110
MOCV ----------------kV12.7Power frequency voltage withstand(dry/wet)kV28
Nominal Current-------kA100.1S TOV--------------kV18
Residual voltage of steep impulse----at 5kA(kV)44.51S TOV----------------kV17.25
8/20µS Residual voltage of lightning impulse current kV(Peak value)-----at 5kA(kV)41.210S TOV---------------kV16.5
Residual voltage of switching impulse current kV (peak value)----at 1kA (kV)31.51200S TOV-------------kV15
1mA D.C reference voltage (kV)21.2Creepage distance ----mm500
Line discharge level1Material employed in series non-linear resistorZinc Oxide
2mS long duration impulse current A400Material of housingsilicon rubber
