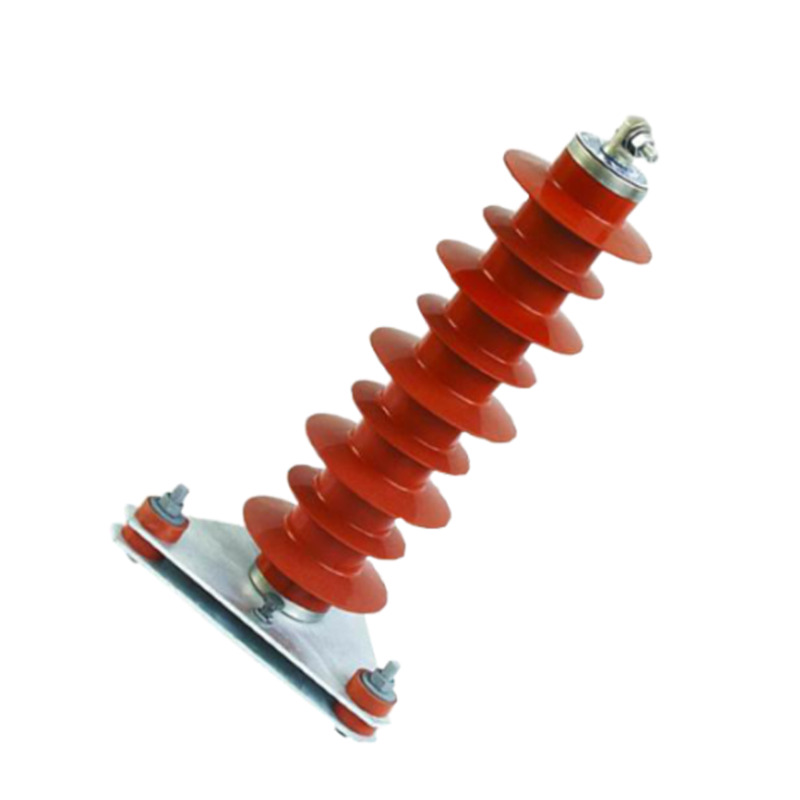

Polymer Surge Protection 33kv ese Lightning Arrester

10 Rods
MOQ
$500.00(10 - 99 Rods) $480.00(100 - 999 Rods) $470.00(1000 - 9999 Rods) $460.00(>=10000 Rods)
Price
Polymer Surge Protection 33kv ese Lightning Arrester
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YH10WZ-100/260
Product Name: Surge Arrester
Color: Gray
Application: Electric Power Transmission
Housing Material:: Silicone Rubber
Model Number: YH10WZ-100/260
Tesr Report: ISO IEC BSI GB IEEC
Related Volatge: 100KV
Lightning Impulse Residual Voltage: 80KV
Brand: JD
Switch Impulse Residual Voltage: 221KV
Basic Infomation
Model Number: YH10WZ-100/260, YH10WZ-100/260
Payment & Shipping Terms
Packaging Details: carton box
Supply Ability: 500 Rod/Rods per Day
Product Description

Lightning arrester


TYPE: Composite metal oxide (ZnO) arrester
STRUCTURE: The composite metal oxide arrester is mainly composed of resistors, insulating bases and flanges
APPLICATION: Product various electrical equipment in power systems,railway electrification systems and communicaiton
systems
ADVANTAGE: Light weight,convenient for transportation and installation,maintenance-free,especially suitable for dirty
areas.

LIGHT WEIGHT SMALL SIZE
STURDY STRUCTURE
STRONG STAIN RESISTANCE
ELECTRIC CORROSION RESISTANCE
ANTI-AGING
GOOD EXPLOSION-PROOF PERFORMANCE
EASY OPERATION
EASY INSTALLATION AND MAINTENANCE


PRODUCT DETAIL AND ADVANTAGE
1.The  resistors are manufactured with high-quality raw materials and strict processes .The comprehensive performance of the resistors has reached China's advanced level.
2.The use of duriton encapsulating materials or epoxy composite casing fundamentally solves the problem of product failure caused by moisture intrusion.Even in a high temperature enviroment with a humidity of more than 90%,there will not be any failures.
3.Silicone rubber material is highly hydrophobic.it can prevent rainwater from forming continuous channels and prevent any pollutants from accumulating during use.make the product corrosion resistant and cut off the leakage current path.
Moreover,the flame retardant and self-extinguishing properties of the material can realize the product cleaning-free function.



Type
Rated Voltage UR
 (kv)
Continuous operating voltage Uc(KV)
1mA DC reference voltage U1mA
(KV)
Normal discharge current( KA)
Steep  current impulse residual volateg(KV)
Lightning impulse residual voltage (KV)
Switch impulse residual voltage(KV)
YH10WZ-100/260
100
80
153
10
291
260
221
YH10WZ-102/266
102
81.6
155
10
297
266
225
YH10WZ-108/281
108
86.4
164
10
314
281
239
YH10WZ-204/532
204
163.2
310
10
594
532
451
YH10WZ-216/562
216
172.8
328
10
628
562
477
