Home /Products/Power Surge Arrester/Electronic Equipment DK 20 Low Voltage 4P Lightning Surge Arrester SPD Voltage Surge Protector AC Power Line Protection

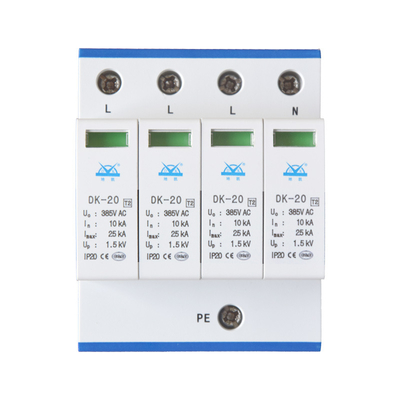

Electronic Equipment DK 20 Low Voltage 4P Lightning Surge Arrester SPD Voltage Surge Protector AC Power Line Protection

10 Pieces
MOQ
$8.00(10 - 999 Pieces) $7.00(1000 - 4999 Pieces) $4.90(>=5000 Pieces)
Price
Electronic Equipment DK 20 Low Voltage 4P Lightning Surge Arrester SPD Voltage Surge Protector AC Power Line Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: DK-20 4P
Product Name: Surge Protective Device
Application: Electronic Equipment
Warranty: 2 Years
Certificate: ISO9001
MOQ: 10
Color: Gray
Condition: 100% Original
Voltage: 385V
Brand: DK
OEM: Acceptable
Basic Infomation
Certification: ISO9001
Model Number: DK-20 4P
Payment & Shipping Terms
Packaging Details: DK Brand Din Rail Three Phase 40kA AC 385V Power Supply Lightning Surge Protector
Supply Ability: 100000 Piece/Pieces per Month
Product Description
DK 20 4P low voltage lightning surge arrester SPD voltage surge protector AC power line protection
Products Description
DK-20 power supply series modular surge protective device(SPD) is designed according to IEC61643 standard. It is accordance with the criterion of Low-voltage Surge Protective Devices-Part 1: Surge Protective Devices Performance Requirements and Test Method of Low-voltage Power Distribution System. With good sealing, it is designed as module and 35mm DIN-Rail Mounting. With working indication window, temperature control circuit breaker and built-in over-current protective circuit, the modular SPD can release automatically to avoid fire danger when it breaks down. With remote alarm connector, it is convenient for remote monitoring. The main module and the base are replaceable. The lightning protection modes is L-PE, N-PE (2P/4P) or L-N-PE (1+1) / (3+1).
Applicable Power Supply System
TT, TN, IT
Maximum Continuous Operating Voltage Uc
AC 385V
Nominal Discharge Current (8/20µs)
10kA
Maximum Discharge Current (8/20µs)
25kA
Voltage Protection Level Up
≤1.5kV
Leakage Current
≤20uA
Respond Time tA
≤25ns
Indication Method
Indication Window, Turn Red When Malfunction
Remote Alarm Function
Optional
Maximum Connection Wire Range
BVR 25mm2
Method of Installation
35mm Din Rail Mounted
Material of Shell
PC
Flame Retardant Rating of Outer Shell
UL94-V0
Protection Level of Outer Shell
IP20
Working Temperature
–25~＋70℃
Relative Humidity
≤95%RH
Item No. are available
Item Series
Protection Mode
Installation Location
Dimension(mm)
Item No


DK-20
L-PE, N-PE(2P)
Low-voltage Single Phase Power Distribution Cabinet

36*91*66mm
DK-20 2P
L-N-PE(1+1P)
DK-20(1+1)
L-PE, N-PE(4P)
Low-voltage Three Phase Power Distribution Cabinet
72*91*66mm
DK-20 4P
L-N-PE(3+1P)
DK-20(3+1)

Application Scope

It can be installed in the low voltage power distribution cabinet/box of buildings, to protect all kinds of power equipment in the single (three) phase power distribution system between LPZ1 and LPZ2. Such as:
1) Low voltage general electricity cabinet and or distribution board of buildings.
2) Outdoor electricity cabinet/distribution box.
3) Applicable power supply system: TT, TN, IT.

Installation and Caution

1) DK-20 modular surge protective device(SPD) can be installed in any place of the single phase AC power line, and mostly be installed in power distribution boxes, power switches and sockets. It shall be connected with the power line in parallel, and shall adopt Kevin Connection, so as to lower the residual voltage.

2) Strip away the surface rubber of input and output terminal, and expose the copper core. Insert the copper core into the hole of the SPD, and make it firm with a screwdriver.

3) The cross-section of the grounding conductor connected with the module SPD indicating alarm shall be at least 16mm2, and the lead wire of the grounding conductor shall be shorter than 1m, and the shorter the better.
Company Profile
Certifications
Product packaging
DK 20 4P low voltage lightning surge arrester SPD voltage surge protector AC power line protection
Should you have any questions, please do not hesitate to contact us.
