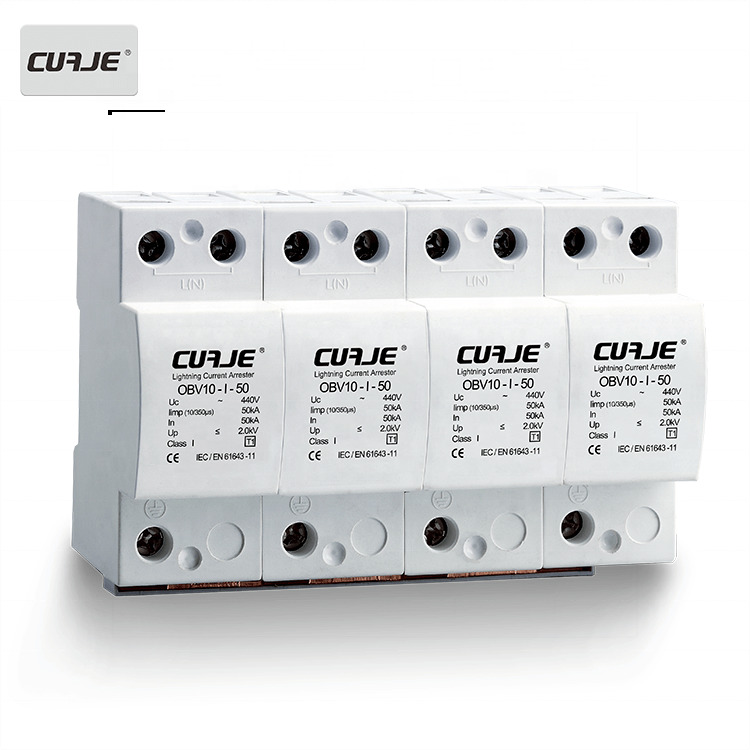

class 1 three phase 50ka surge arrester OBV10-I-50 meet the type 1 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions.The voltage-limiting,high-performance spark gaps provide several benefits.A short response time, a low protection level and high current leakage capability with long service life.
+ Connectable lightning current and surge arrestors
+ High arresting capacity up to 50 kA (10/350μs) per pole
+ Combination arrestors for buildings with lightning protection system
+ Simple standard hat rail mounting
+ Labelled connections
+ Usable in systems with lightning protection class 1-4
|
Model: OBV10-I-50 |
|||
|
Maximum continuous operating voltage |
Uc |
V |
255/275/320/385 |
|
SPD to EN 61643-11 |
|
|
Type 1 |
|
SPD to IEC 61643-1 |
|
|
class I |
|
LPZ |
|
|
0→2 |
|
Lightning impulse current (10/350μs) |
Iimp |
kA |
50 |
|
Lightning impulse current (10/350μs) [total] |
|
kA |
200 |
|
Nominal discharge surge current (8/20μs) |
In |
kA |
50 |
|
Arrester surge current (8/20μs) [total] |
|
kA |
200 |
|
Voltage protection level |
Up |
kV |
1,3 |
|
Response time |
tA |
ns |
<100 |
|
Follow current quenching capacity Ipeak |
Ifi peak |
kA |
25 |
|
Maximum back-up fuse |
|
A |
500 |
|
Temperature range |
ϑ |
°C |
-40℃~+85℃ |
|
Protection rating |
|
|
IP 20 |
|
Connection cross-section, rigid |
|
mm² |
10-50 |
|
Connection cross-section, multi-wire |
|
mm² |
10-35 |
|
Connection cross-section, flexible |
|
mm² |
10-25 |
