1.0 SCOPE
1.1 Electric ratings: Single phase and three phase power distribution and control system of 230/400V,AC 50Hz/60Hz;
1.2 Number of poles: 1, 2,3, 4;
1.3 Application: Protect electric system and on-loading electrical apparatus from lightening and instantaneous over-voltage;
1.4 Standard:IEC61643-1, EN61643-11
2.0 Technical data
|

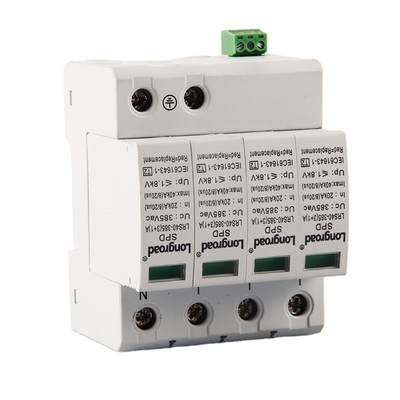

Model |
LRS40-385(3+1)A |
|
Number of poles |
4P |
|
SPD Classification according to IEC61643-1 |
T2 |
|
Maximum Continuous Operating a.c.Voltage (Uc) |
385Vac |
|
Nominal Discharge Current (In) (8/20)µs |
20kA |
|
Max Discharge Current (In) (8/20)µs |
40kA |
|
Voltage protection level (Up) |
≤1.8kV |
|
Max backup fuse (L) |
125A gL |
|
Response time (tA) |
≤25ns |
|
Operating state/fault indication |
Green/red |
|
Operating temperature range (Tu) |
-40℃~+80℃ |
|
Cross-section area |
35mm² solid/50mm² flexible |
|
Mounting on |
On DIN rail EN 60715 (35mm) by means of fast clip device |
|
Enclosure materials |
Thermalplastic UL94-V0 |
|
Type of remote signalling contact |
Switching contact |
|
Switching capacity a.c |
250V/0.5A |
|
Switching capacity d.c |
250V/0.1A,125V/0.2A,75V/0.5A |
|
Cross-sectional area remote signalling contact |
Max 1.5mm² solid/flexible |
3.0 Overall and mounting dimensions (mm)
