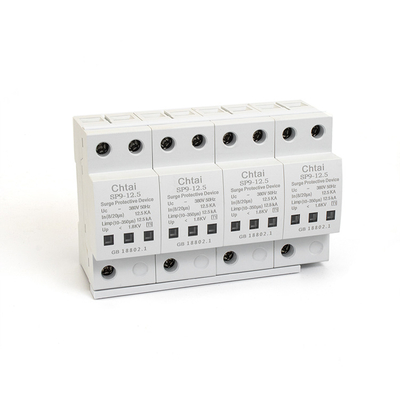

xinghe SPD SP2-12.5 4p 1.8kv 275v 1 AC Surge Protector Appliance Class Lightning Arrester SP9 Series IP20 AC SP2

1.0 Pieces
MOQ
xinghe SPD SP2-12.5 4p 1.8kv 275v 1 AC Surge Protector Appliance Class Lightning Arrester SP9 Series IP20 AC SP2
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: AC SP2
Type: T1+T2
Number Of Pole: 4
Rated Voltage: 275V
Product Model: AC Surge Protector Device
Test Category: Class 1 Test
Poles: 1P,2P,3P,4P
Rated Frequency: 50~60Hz
Color: White/red/orange/yellow/gray...
Response Time (L-N) TA: ≤25ns
Protection Level: IP20
Working Environment Temperature: -40~85℃
Certificate: CE
OEM ODM: Avaiable
Basic Infomation
Certification: CE
Model Number: AC SP2, AC surge protector device
Payment & Shipping Terms
Supply Ability: 5000 Piece/Pieces per Day
Product Description
Products Description

Range of application

surge protection device (SPD)is suitable forAC 50/60Hz,<380V,there is a failure release mounted on the module of surge protection device, When the SPD fails in breakdown for over heat and over-current, the failure rlease will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnorma.It adopts 35mm standard rail installed at the junction of LPZOA area or LPZOB area and LPZ1.
Advantage：
1. Three-phase protection for TN-S system. 2. Pluggable module, easy for installation and maintenance. 3. High discharge capacity, quick response. 4. Double thermal disconnection devices, providing more reliable protection. 5. Green window will change when fault and also provide remote alarm control at the same time.
The product conforms to IEC61643-1, GB18802.1 and other standards.
Product Paramenters
Product model
SP2-AC
Test category
Class 1 test
Poles
1P,2P,3P,4P
Color
white/red/orange/yellow/gray...
Rated Voltage(Max. continuous operation voltage) Uc
275V AC
Voltage waveform
10/350μs
Response time (L-N) tA
≤25ns
Protection level
IP20
Working environment temperature Tu
-40~85℃
Sectional area of wires
4-35mm²
Installation method
35mm standard DIN rail
Sheathing material
Plastic
Authentication
CE
Standard
GB18802.1/IEC 61643-1
OEM ODM
Avaiable
Type
SP9-12.5
SP9-15
SP9-25
SP9-50
Impulse discharge current llimp(10/350μs)
12.5
15
25
50
Voltage protection level Up
≤1.8
≤1.8
≤2.2
≤2.2
Details Images
Application
Certifications
Company Profile
Wenzhou Xinghe Import & Export Co.,Ltd. is a high-tech enterprise that engaged indesigning,developing,manufacturing and selling low-voltage air circuit breaker and socket,Surge protective device and so on. Our products have proven popular all over the world.
Xinghe Company Is a leading supplier of electrical accessories in China.We have our own factory and raw material production base in Zhejiang province. Our main products now include circuit breakers, AC contactors, timers, relays, fuses, push buttons,switches, modular sockets,industrial plugs and sockets, and multi-meters.We have a wide range of products, good quality,reasonable price and novel style, at the same time, we can provide fast delivery and efficient after-sales service.
In the fierce market competition, the company adhere to the tenet that "brand is benefit", providing our customers with quality products and enthusiastic service.
We sincerely welcome customers from home and abroad to cooperate with and create a bright future together.
FAQ

Q1:When can I receive quotation and detail information after send the enquiry?

A: Reply will be sent in 24hours.

Q2: Do you provide samples ? is it free or extra ?

A: Yes,We are honored to provide you with samples of what you need before place order on free but do not pay the cost of freight.

Q3: How can I get some samples?

A: Please contact us and leave detailed contact information, we promise to keep your information confidential.

Q4:What's the delivery time?

A: Samples cost 5-7 days. Bulk order usually takes 7-15days after confirming the payment,but the specific time shall be determined according to the order quantity.

Q5:Do you accept OEM business?

A:Yes, we do.

Q6:Do you have a warranty policy?

A:Our products are warranty for two years and full lifespan aftersales service.
